• 4-Wheel Antilock Brake Sys
• 5G Modem
• Ford App
• Hill Start Assist
• Jewel Effect Headlamps
• Remote Keyless Entry
• Stabilizer Bar, Front/Rear
• Sync4 W/8" Screen

• 1Touch Dwn Dr/Pass Window
• 4.2" Cluster Display
• Air Cond, Manual Front
• Black Vinyl Floor Covering
• Outside Temp Display
• Particulate Air Filter
• Power Locks And Windows
• Steering:Tilt/Telescope, Cruise & Audio Controls
• Upfitter Switches

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Belt-Minder Chime
• Driver/Passenger Air Bags
• Secure Pkg 1 Yr Included
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

650A

Heavy-Service Front Suspension Package

Power Equipment Group

Ford Security Package (1-year Included with activation)

Low Deflection Spacers

Ford Connectivity Package (1-year included)

XL Chrome Package

• ORDER CODE 650A

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 190
• Weight Information
• Base Curb Weight (lbs): 8000
• Base Curb Weight (lbs): 7298
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Front (lbs): 6500
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 12880
• Curb Weight - Front (lbs): 4121
• Curb Weight - Rear (lbs): 3177
• Gross Vehicle Weight Rating Cap (lbs): 16500
• Gross Combined Wt Rating (lbs): 30000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 17500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1750
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 21300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5325
• Maximum Trailering Capacity (lbs): 17500
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 6000
• Spring Capacity - Front (lbs): 6500
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Rear (lbs): 12880
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 12880
• Axle Ratio (:1) - Front: 4.88
• Axle Ratio (:1) - Rear: 4.88
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.4
• Rear Brake Rotor Diam x Thickness (in): 15.8
• Tires
• Front Tire Order Code: TGJ
• Rear Tire Order Code: TGJ
• Front Tire Size: LT225/70SR19.5
• Rear Tire Size: LT225/70SR19.5
• Front Tire Capacity (lbs): 7500
• Rear Tire Capacity (lbs): 15000
• Revolutions/Mile @ 45 mph - Front: 647
• Revolutions/Mile @ 45 mph - Rear: 647
• Wheels
• Front Wheel Size (in): 19.5 X 6
• Rear Wheel Size (in): 19.5 X 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 48.1
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Exterior Dimensions
• Wheelbase (in): 168
• Length, Overall (in): 253.3
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 82.5
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): 47.2
• Cab to Axle (in): 60
• Cab to End of Frame (in): 107.2
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 8.6
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.3
• Second Leg Room (in): 33.5
• Second Shoulder Room (in): 65.8
• Second Hip Room (in): 64.7
• Summary

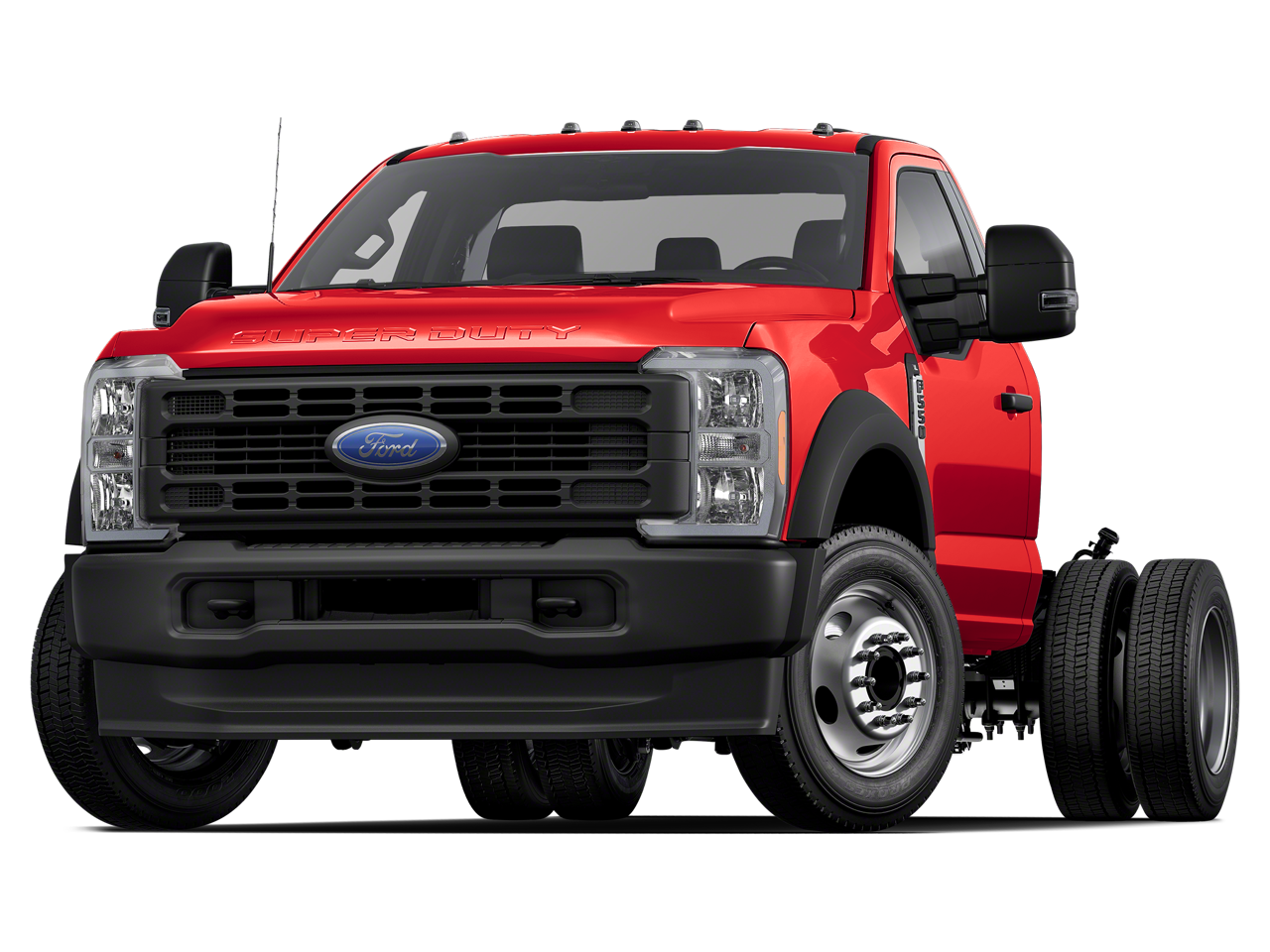

• Vehicle Name: Ford Super Duty F-450 DRW
• Body Style: SD Super Cab
• Body Code: H
